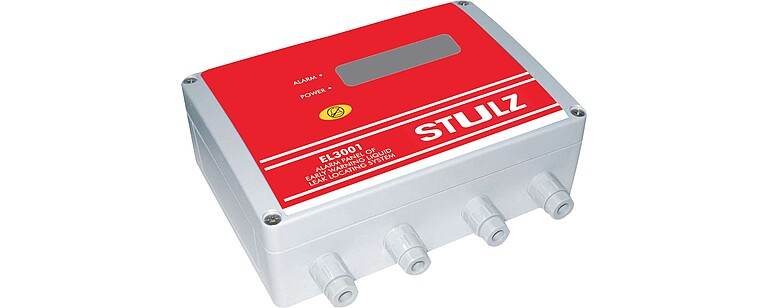

EL3001 Control Panel

Easy to install, complete monitoring system to detect early liquid leakage. Once leak is detected it responds within a few seconds and provides accurate leak location.

General Features

  • Maximum accumulated length of sensing cable

    200m (Note: 192m for 4-20mA interface)
  • Maximum accumulated length of jumper cable

    300m
  • Precision of leak location

    +/- 1 metre or +/- 0.5%
  • Display

    LCD with backlight. 2 x 14 English characters
  • Audible alarm

    90dB max. buzzer with silencing button
  • System reset

    One single button for testing/resetting the system (hold down buzzer button for 6 seconds)
  • Failsafe operation

    Ability to operate in loop back operation and to detect liquid leakage during cable break
  • Time to detect leak/cable break

    4 seconds typically
  • Liquid leak detection capability

    Typically 20mm in length of liquid (e.g. tap water) in full contact with sensing cable. Leak sensitivity is adjustable.
  • Multi-leak detection and location capability

  • Modbus TCP optional

  • Remote supervision by RS485 Modbus optional

  • Analog output 4-20mA interface optional

  • ASIC based digital location principle (patent pending) with inherent temperature stability, zero drift and very low power consumption

Environmental Ratings

Operating temperature -10°C - 50°C (indoor installation only)
Storage Temperature -20°C - 70°C
Humidity 5% to 95% non-condensing



Power Requirements

Power Supply 230 +/- 15% VAC, 50/60 Hz
Optional Input 115 VAC/ 50-60 Hz or 12 to 30 VAC/DC power input
Power Consumption 3.5 VA / 3 W maximum



 Power Relays Switching Characteristics

Cable break/power failure by contact (1 relay) Operation - SPDT
Switching current - 3A at 250 VAC, 5A at 30 VDC
Liquid leakage dry contact (2 relays) Operation - SPDT
Switching current - 5A at 250 VAC, 7A at 30 VDC



Serial Communication Interface

Physical support RS485-two wire, ESD and surge protected as per IEC 61000-4-5
Protocol Modbus
Optional Modbus/TCP output with 10/100Mbs Ethernet and RJ-45 connector



Analog Output

Physical support 4 to 20 mA opto-isolated interface

Voltage range

9 to 36 VDC overvoltage protected
Additional information Two-wire opto-isolated analog current interface with galvanic separation of 2.5kV
Nominal current

Normal - 4 mA
Cablebreak - 20 mA
Leak - 6mA plus 0.0625 mA per meter of leak location



Compliance to International Standards

EMC emission IEC61000-6-3(2001)
Electromagnetic compatibility
Generic emission standard for residential, commercial and light industrial environment
EMC immunity IEC61000-6-1(2001)
Electromagnetic compatibility
Generic immunity standard for residential, commercial and light industrial environment
