Stulz Leak Detection Systems


Sensing Cables

For detection of water, corrosive and conductive liquids

Applications

  • Museums and Art Galleries

  • Computer rooms

  • Data centres for banks, finance, logistics etc.

  • Telecommunication switching rooms

  • Clean rooms for semiconductor plants

  • Clean rooms for lcd manufacturing plants

  • Clean rooms for bio-medical plants

  • District cooling/heating systems

  • Water treatment plants

  • Underground hot water piping

  • Tunnels

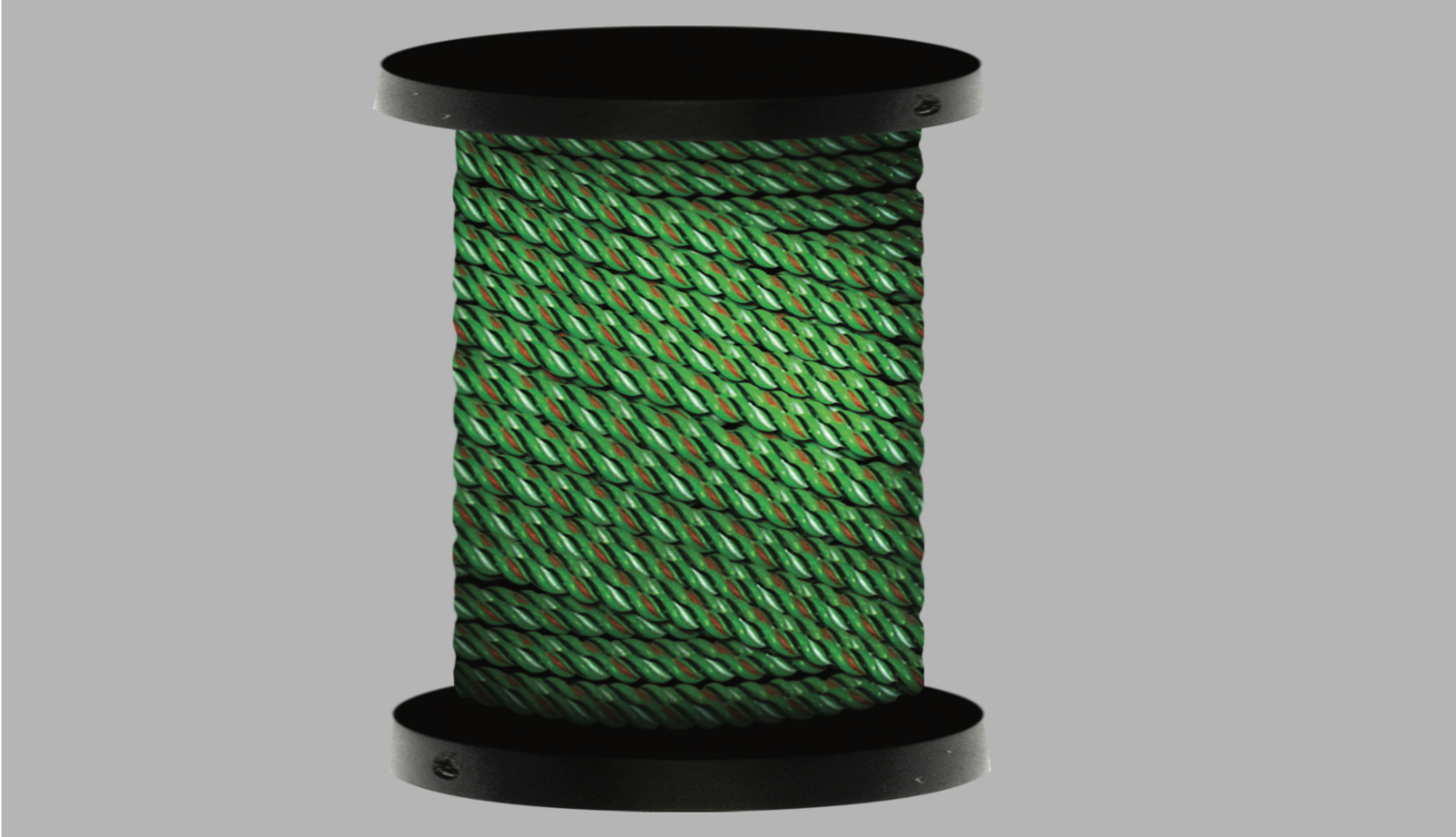

EL6001 Sensing Cable - For detection of water and slightly corrosive and conductive liquids


Characteristics and Performance

  • Application : Water and slightly corrosive and conductive liquids
  • Diameter size : 6.3mm average
  • Continuity wires : White and red insulated with flame retardant polymer
  • Sensing wires : 2 black wires, semi-conductive polymer
  • Carrier : Flame retardant polymer material with green colour in high visibility
  • Fire resistance : Non- flame propagating and self extinguishing
  • Lengths: Available in random length or cut to length as per requirement
  • Modular Connections: Option for male/female connector (i.e. all connections/joints are modular)
  • Fixed Connections: Option for hot shrink tube approach (i.e. all connections/joints are fixed)

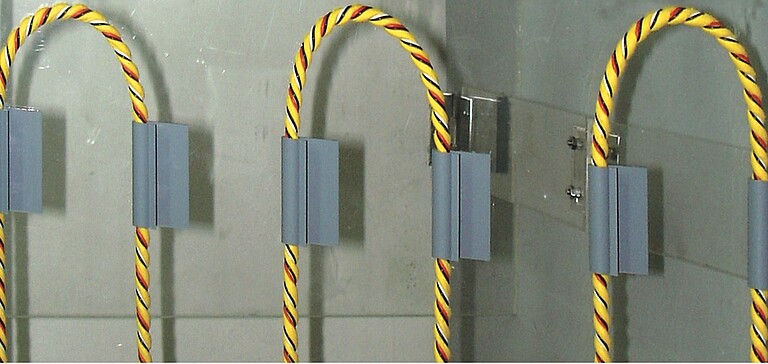

EL7001 Sensing Cable - For detection of water and highly corrosive and conductive liquids


Characteristics and Performance

  • Application : Water and slightly corrosive and conductive liquids such as 100% sulphuric acid
  • Diameter size : 6.3mm average
  • Continuity wires : White and red insulated with fire resistant fluoropolymer
  • Sensing wires : 2 black wires, semi-conductive fire resistant fluoropolymer
  • Carrier : Fire resistant fluoropolymer material with yellow colour in high visibility
  • Fire resistance : UL-910 (NFPA 262, highest re/smoke standard)
  • Lengths: Available in random length or cut to length as per requirement
  • Modular Connections: Option for male/female connector (i.e. all connections/joints are modular)
  • Fixed Connections: Option for hot shrink tube approach (i.e. all connections/joints are fixed)
