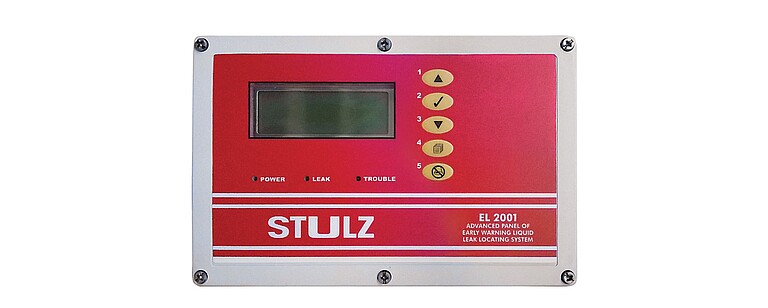

EL2001 Supervising Panel

General Features

• Supervising capacity

  Up to 99 leak detection panels (e.g. EL3001, EL4001, EL4005)

• Maximum accumulated length of sensing cable

  20,000 metres (200m internal + 99 x 200m external)

• Precision of leak location

  +/- 1 metre or +/- 0.5%

• Failsafe operation

  Ability to operate in loop back operation and detect liquid leakage during cable break

• Display

  Permanent backlight with LCD of 4 lines x 20 English characters

• Audible alarm

  90dB max. buzzer with silencing button

• System menu

  Access to event log, system reset and configuration mode

• Fast response

  18 seconds typically to alarm

• Liquid leak detection capability

  Typically 20mm in length of liquid (e.g. tap water) in full contact with sensing cable. Leak sensitivity is adjustable

• Panels under supervision identification

  By different panel number and name with up to 35 characters

• Panel names setup

  By PC software

• Event log

  896 time stamped events stored in non-volatile memory. First in/first out in case of overflow

• Mechanical dimensions

  Rugged ABS UL-VO case 222 x 146 x 55mm

• Ingress protection

  Dust proof, splash proof IP 65
